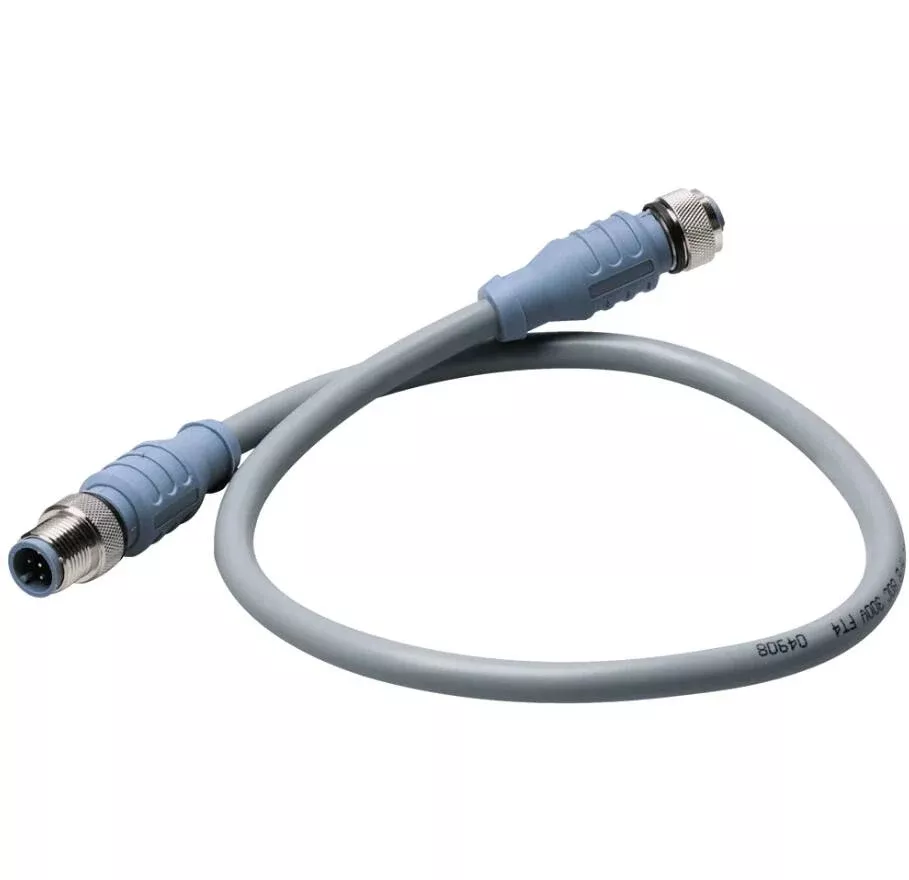

Maretron Micro Double-Ended Cordset – 4 Meter• CM-CG1-CF-04.0

Sale!
Maretron Micro Double-Ended Cordset - 4 Meter• CM-CG1-CF-04.0

Maretron Micro Double-Ended Cordset – 4 Meter• CM-CG1-CF-04.0

Original price was: $44.79.Current price is: $33.02.

SKU: MRTCMCG1CF040 Category:

Description

Micro Double-Ended Cordset – 4 Meter

Mechanical

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59?Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V

    • Cable

  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
  • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
  • Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
