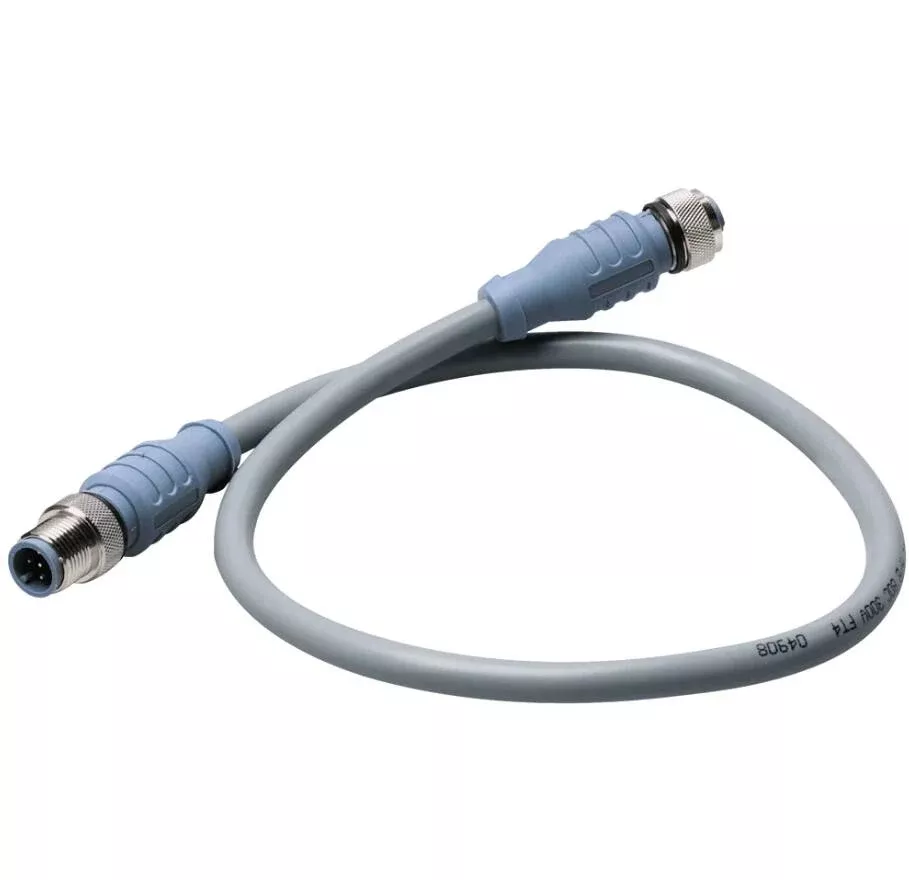

Maretron Micro Double-Ended Cordset – 10 Meter• CM-CG1-CF-10.0

Sale!
Maretron Micro Double-Ended Cordset - 10 Meter• CM-CG1-CF-10.0

Maretron Micro Double-Ended Cordset – 10 Meter• CM-CG1-CF-10.0

Original price was: $59.99.Current price is: $43.57.

SKU: MRTCMCG1CF100 Category:

Description

Micro Double-Ended Cordset – M to F – 10m (gray) – Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and they are waterproof for continued operation even while submerged in the bilge.

Mechanical

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59″

    • Electrical

  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V

    • Cable

  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
  • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
  • Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
