Johnson Pump CM10P7-1 – 12V Circulation Pump – 10-24486-03

Description

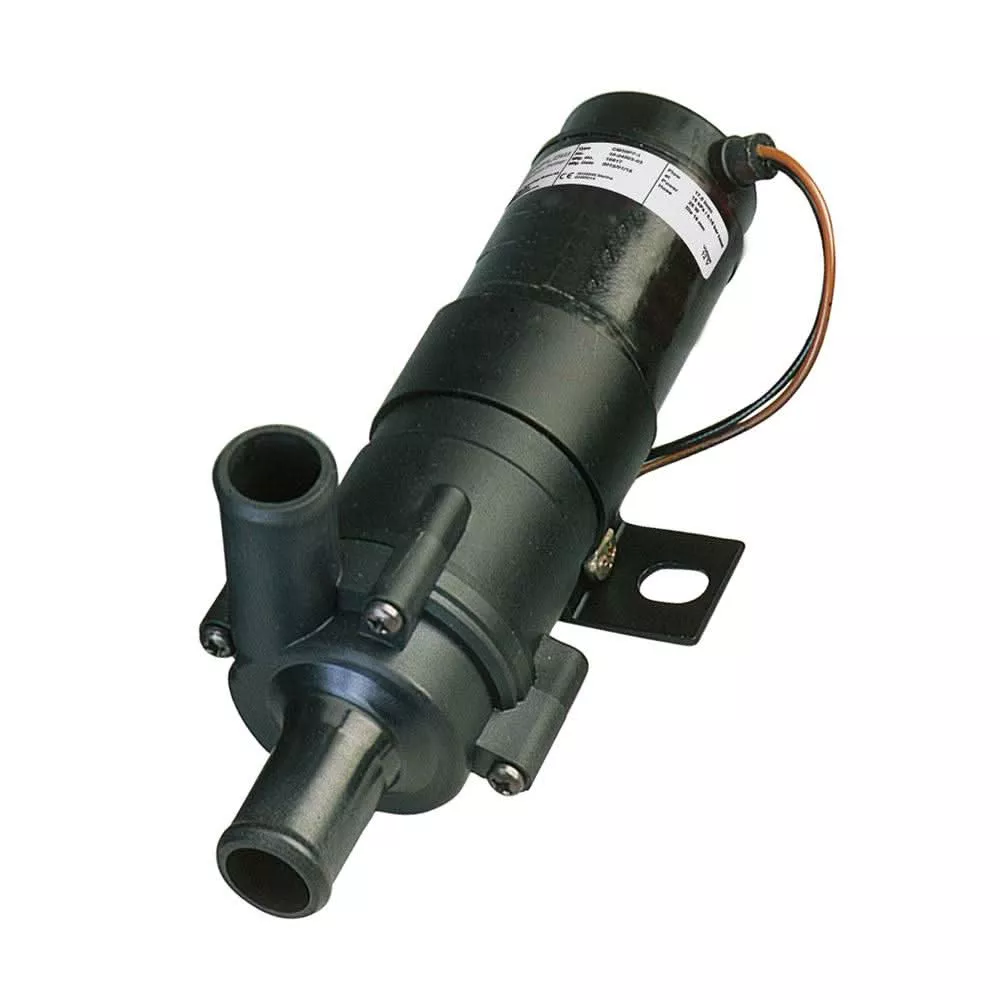

Johnson Pump CM10P7-1 12V Circulation Pump – 10-24486-03

The Johnson Pump CM10P7-1 Circulation Pump (10-24486-03) is a high-quality, 12-volt DC water circulation pump designed for efficient fluid movement in marine, RV, and auxiliary systems. Engineered for reliable performance and quiet operation, this compact pump provides steady flow to support cooling circuits, livewell recirculation, freshwater systems, and general water transfer tasks on boats, yachts, and mobile applications.

Constructed with corrosion-resistant materials and a rugged motor assembly, the CM10P7-1 is built for longevity in harsh environments. Its compact footprint and simple electrical connection make it easy to install in tight spaces, while the pump’s self-priming capability and consistent flow rate ensure dependable performance under varying load conditions.

Whether used for livewell water circulation, freshwater system support, or auxiliary cooling duties, the Johnson Pump CM10P7-1 delivers efficient, low-maintenance operation you can count on out on the water.

Key Performance Features

• Leak-Proof Magnetic Drive: The motor and pump are magnetically coupled, eliminating the need for a traditional shaft seal. This seal-less design prevents leaks and significantly extends the service life of the unit.

• Low Power Consumption: Operates on a 12V DC system with a maximum draw of only 14 Watts, making it ideal for solar-powered or battery-dependent systems where energy conservation is critical.

• Continuous Duty Performance: Features a permanent magnet, ball-bearing motor rated for up to 5,000 hours of uninterrupted service, ensuring reliable operation for livewells or refrigeration cooling.

• Versatile Fluid Compatibility: Safely handles fresh water, salt water, and ethylene glycol mixtures (up to 60%). It is built to operate in extreme temperatures ranging from -40°F to 212°F.

• Engine Room Safe: The unit is ISO 8846 ignition protected, allowing for safe installation in engine compartments and other potentially hazardous areas on your vessel.

• Magnetic Drive Technology: The motor and pump are magnetically coupled, creating a leak-proof design that eliminates the need for a traditional shaft seal. This significantly reduces maintenance and prevents leaks.

• Continuous Duty Motor: Equipped with a permanent magnet, ball-bearing motor rated for up to 5,000 hours of uninterrupted service. It is built to handle voltage fluctuations of ±20%.

• High Efficiency: Provides a steady flow rate of 4.0 GPM (15 L/min) while maintaining very low electrical consumption (Max 14W), making it ideal for battery-powered systems.

• Liquid Versatility: Safe for use with fresh water, salt water, and ethylene glycol mixtures (up to 60% glycol). It can handle extreme liquid temperatures ranging from -40°F to 212°F.

• Safety & Durability: The unit is ISO 8846 ignition protected, meaning it can be safely installed in engine compartments. It is also designed to withstand dry running for up to 30 minutes without damage.

In the Box

• Johnson Pump CM10P7-1 (10-24486-03) Unit

• Pre-installed Flexible Power Cord (04-36245-01)

• Universal Mounting Bracket (For flat surface installation)

• Installation and Maintenance Manual

Dimensions

• Length: 6.97″ (177 mm)

• Width: 2.68″ (68 mm)

• Height: 3.35″ (85 mm)

• Weight: 1.2 lbs (0.53 kg)
