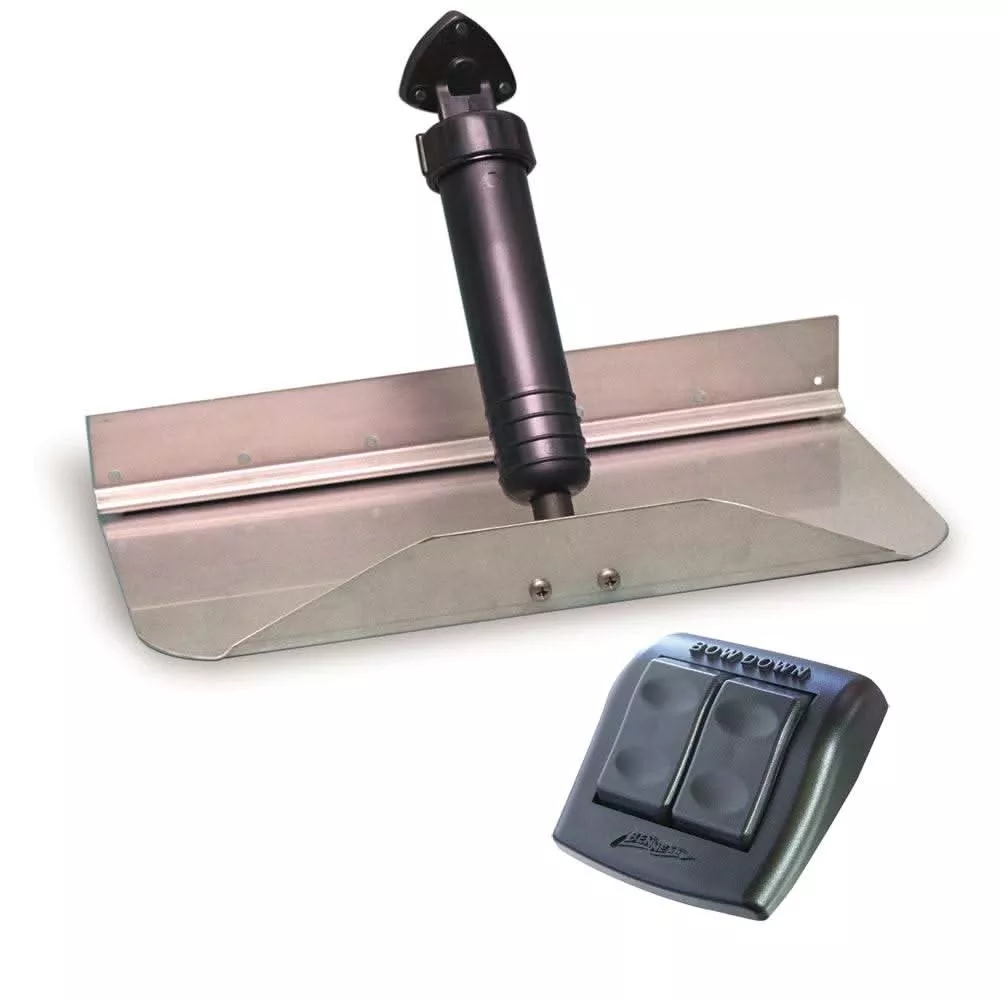

BENNETT 309E 30 X 9 Trim Tabs with Euro Rocker Switch

Description

Bennett 309E Trim Tab Kit – 30″ x 9″ with Euro Rocker Switch

The Bennett 309E Trim Tab System is designed to enhance boat performance by improving planing time, ride stability, and overall fuel efficiency. Featuring 30″ x 9″ stainless steel trim planes and a Euro-style rocker switch, this complete kit delivers precise trim control and reliable operation for a smoother, more efficient ride.

Manufactured from high-grade stainless steel, the trim tabs provide long-lasting corrosion resistance in both freshwater and saltwater environments. Bennett’s proven hydraulic system allows for smooth, quiet operation while correcting bow rise, side-to-side listing, and porpoising.

The included Euro Rocker Switch offers intuitive, dash-mounted control with a clean, modern appearance, making it easy to fine-tune boat attitude for varying loads and sea conditions.

Key Performance Features

• Euro-Style Rocker Switch (ES2000): A waterproof helm control with a tactile “click” for precise manual control. It is designed for flush mounting and includes a safety interlock to protect the pump.

• 12-Gauge 304 Stainless Steel: These high-grade planes are built to withstand the rigorous demands of offshore salt water. The interlocking hinge design distributes the lifting force evenly across the transom.

• V351HPU1 Hydraulic Power Unit: The industry-standard pump provides the reliable force needed to move these large planes even under high-speed water pressure.

• Through-Hull Hydraulics: The A1101A actuators hide the hydraulic lines within the upper hinge, passing them through the transom for a clean, professional look and protection from the elements.

• Superior Durability: Unlike electric systems, the hydraulic components are modular and individually replaceable, ensuring the system can be serviced for decades.

Technical Specifications

In The Box

• 2 x 30″ x 9″ Stainless Steel Trim Planes

• 2 x Hydraulic Actuators (A1101A)

• 1 x Hydraulic Power Unit (HPU) (V351HPU1)

• 1 x Euro-Style Rocker Switch (ES2000)

• 20′ Hydraulic Tubing & 20′ Wiring Harness

• All necessary mounting hardware and templates

Installation Considerations

Due to the 30-inch width, it is vital to check for transom obstructions before drilling. These tabs must be mounted on a flat surface and should ideally be positioned at least 3″ to 4″ from the outer edge (chine) of the boat to maximize leverage and avoid turbulent water.
