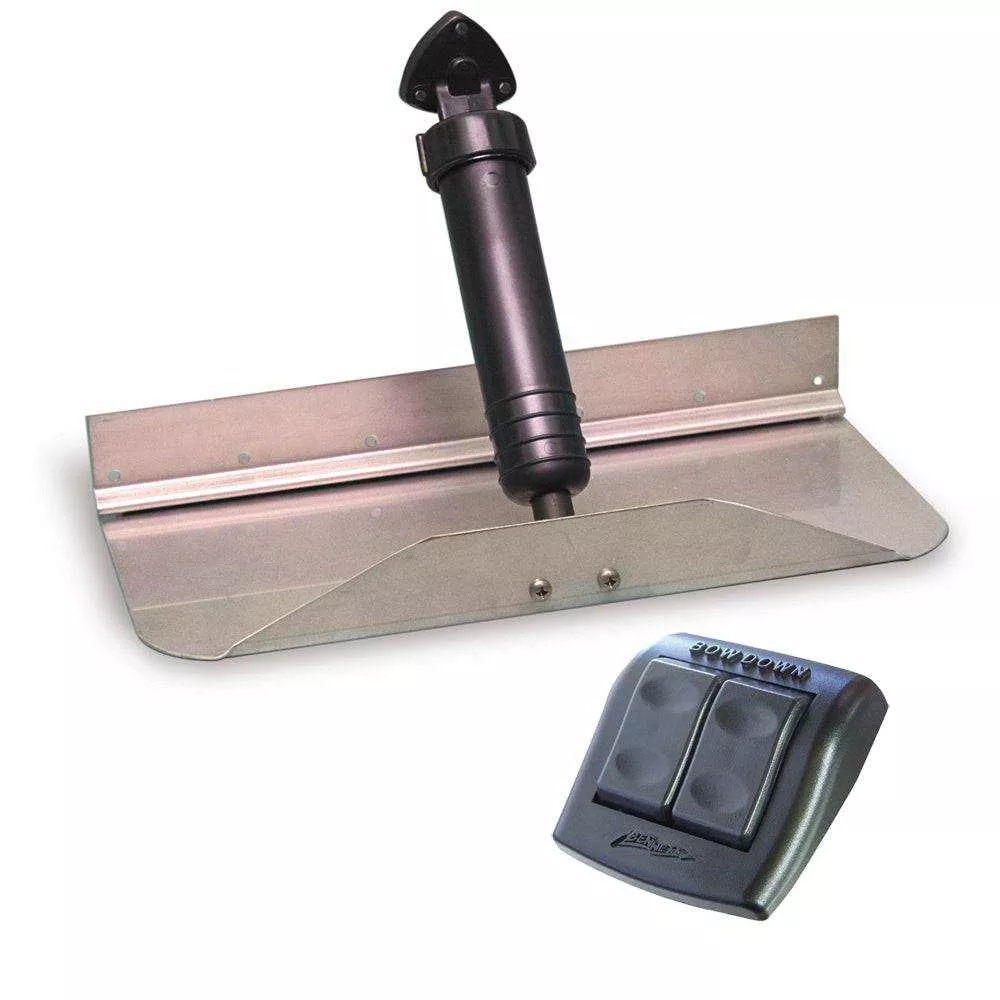

BENNETT 249E 24 X 9 Trim Tabs with Euro Rocker Switch

Description

Bennett 249E 24″ x 9″ Trim Tab System with Euro Rocker Switch

The Bennett 249E Trim Tab System features 24″ x 9″ stainless steel trim planes combined with a Euro-style rocker control switch, delivering reliable, precise trim adjustment for mid-size powerboats. This system is designed to improve overall boat performance by reducing bow rise, shortening time to plane, and maintaining proper running attitude in changing load and sea conditions.

Built around Bennett’s proven hydraulic trim tab technology, the 249E system provides smooth, consistent operation with long-term durability in both saltwater and freshwater environments. The included Euro rocker switch offers intuitive port and starboard control with a clean, modern helm appearance.

Ideal for center consoles, walkarounds, and cruisers, the Bennett 249E trim tabs help maximize efficiency, comfort, and control on the water.

Key Performance Features

• Euro-Style Rocker Switch (ES2000): A waterproof, ergonomic helm control that provides a tactile “click” for precise manual adjustments. It includes a built-in safety to prevent simultaneous “up/down” commands to the pump.

• 12-Gauge 304 Stainless Steel: The tabs are high-grade marine stainless, sheared and bent (not welded) to maintain maximum corrosion resistance.

• V351HPU1 Hydraulic Power Unit: The industry-standard pump that provides the muscle. It is designed to be mounted inside the dry area of the boat and can operate both tabs simultaneously with smooth, quiet power.

• Through-Hull Actuators (A1101A): These actuators feature internal hydraulic lines that pass through the transom via the upper hinge, eliminating exposed hoses that could be damaged or leak.

• Interlocking Hinge: The full-length piano hinge ensures the stress of the water pressure is distributed evenly across the transom, preventing fiberglass fatigue.

Technical Specifications

In The Box

• 2 x 24″ x 9″ Stainless Steel Trim Planes

• 2 x Hydraulic Actuators (A1101A)

• 1 x Hydraulic Power Unit (HPU) (V351HPU1)

• 1 x Euro-Style Rocker Switch (ES2000)

• 20′ Hydraulic Tubing & 20′ Wiring Harness

• Installation Hardware & Transom Templates

Installation Pro-Tip

For a 24-inch wide tab, placement is critical. Ensure you have enough flat surface area on your transom, avoiding any strakes or hull steps that could cause turbulent water to hit the tabs. Ideally, the tabs should be mounted 3″ to 4″ from the chine (the outer edge of the boat) to provide the best leverage for leveling.
